Highlights

• The encapsulant permits easy cable splice re-entry for future changes and maintenance
• The resin is formulated for virtually every electrical application requiring a reliable, soft, re-enterable resin with good handling and performance characteristics. Main applications include encapsulating, sealing, potting and shock damping

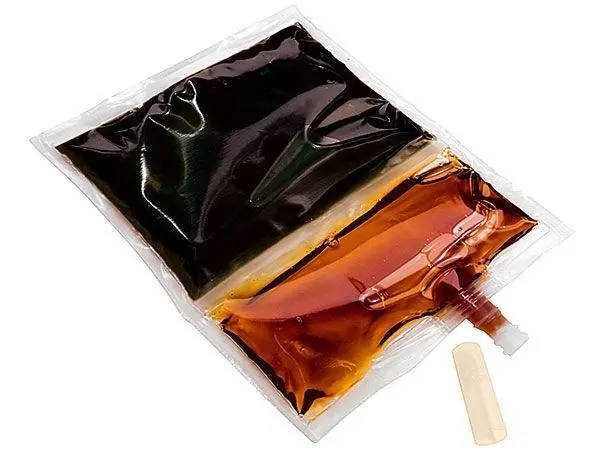

• Available in both in the individual 3M™ 2123 Electrical Re-Enterable Resin bags
• The resin flows well at low temperatures, filling the closure and minimising air voids. Operating temperature is 90°C continous and emergency operating temperature is up to 130°C
• Excellent wetting properties and low viscosity
• Reaccesability of the cable connection
• Homogenous and reliable insulation
• Good adhesion of the resin on cables and on itself
• Excellent protection against water
• 3M™ Scotchcast™ Easy Dispenser 250: Compatible and used with commercially available applicator guns
• 3M™ Scotchcast™ Easy Dispenser 250: Mixing of resin components is by a static mixer and delivered together with cartridge

3M™ Scotchcast™ 2123 Electrical Re-enterable Insulating Resin is a soft , two part polybutadiene resin encapsulant designed especially for re-enterable splice protection. It is formulated for virtually every electrical applicaion requiring a soft , re-enterable resin with good handling and performance characteristics.

This resin is also used as the insulating material for cable splices operating at 1000 volts and is rated for continuous use at 90 degrees celcius with an overload rating of 130 degrees celcius.

Typical Properties
